SSB
PRECISION LAYER WINDING MACHINES
Precision layer winding line SSB. Suitable for the precision layer winding of thin welding wire onto plastic or metal spools
FEATURES AND DIMENSIONS
◦ Base: 3.100 x 3.200 mm
◦ Programmable logic electronic equipment
◦ Reversible automatic wire traverse
◦ Safety devices in accordance with accident prevention regulations
◦ Front synoptic panel to control the line
◦ Wire straightening unit positioned at right angles
◦ Digital pre-selector footage indicator with deceleration and shutdown on reaching required quantity
◦ Range of wire diameters to be wound: from 0.8 to 2.0 mm
◦ Max. linear respooling speed up to 35 m/s
◦ Capacity of spools which can be used for winding up to 20 Kg

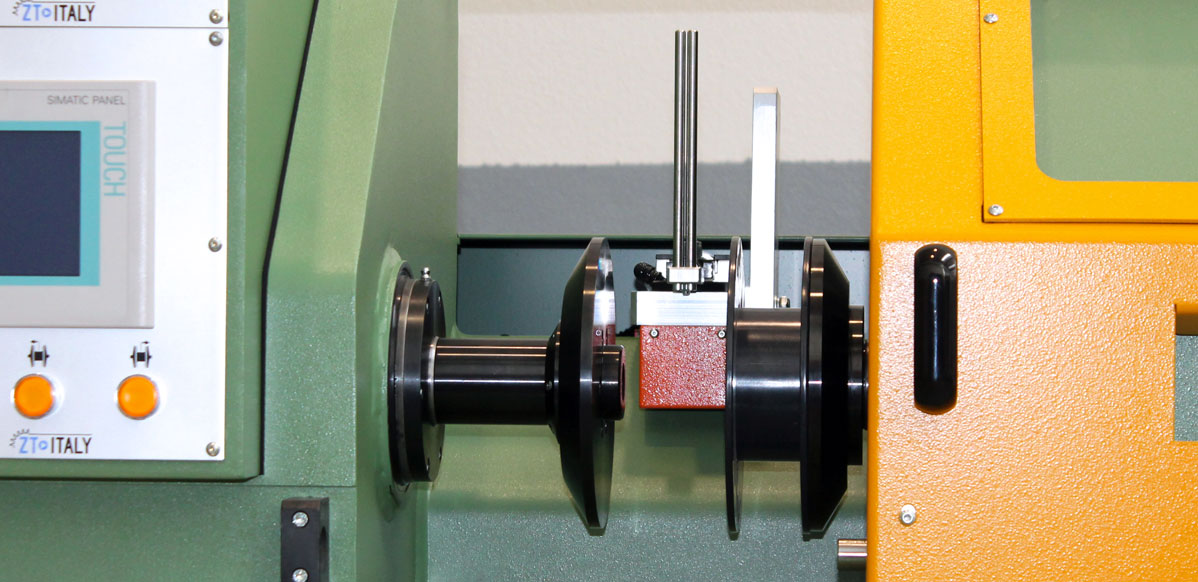

SSB2
PRECISION LAYER WINDING MACHINES
Precision layer winding line SSB2. Suitable for the precision layer winding of thin welding wire onto plastic or metal spools
FEATURES AND DIMENSIONS
◦ Programmable logic electronic equipment
◦ Reversible automatic wire traverse
◦ Safety devices in accordance with accident prevention regulations
◦ Front synoptic panel to control the line
◦ Wire straightening unit positioned at right angles
◦ Digital pre-selector footage indicator with deceleration and shutdown on reaching required quantity
◦ Range of wire diameters to be wound: from 0.8 to 2.0 mm
◦ Max. linear respooling speed up to 10 m/s

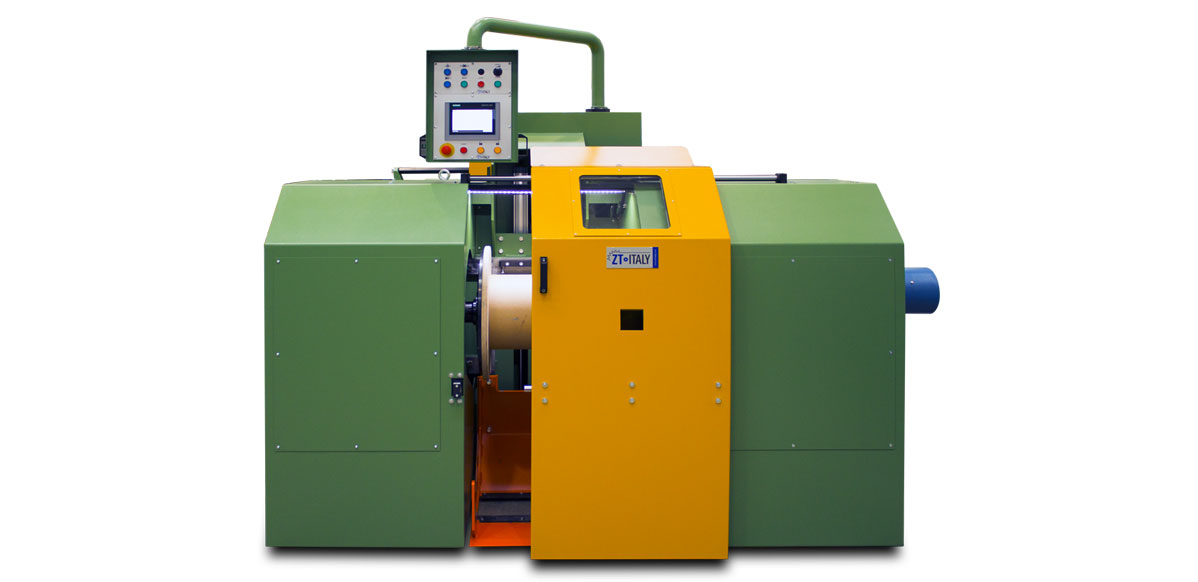

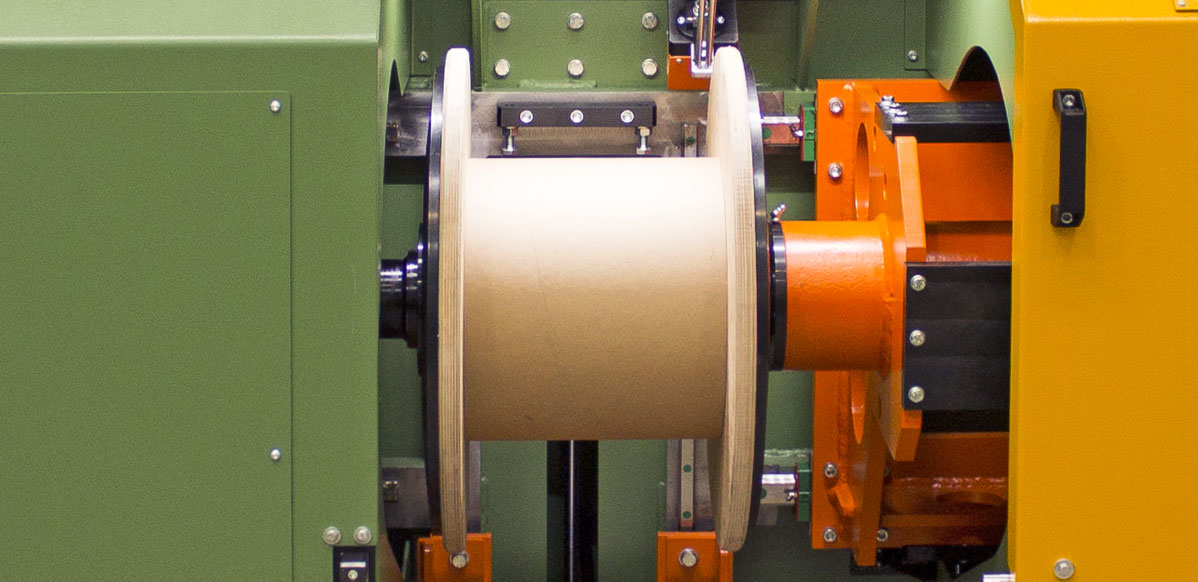

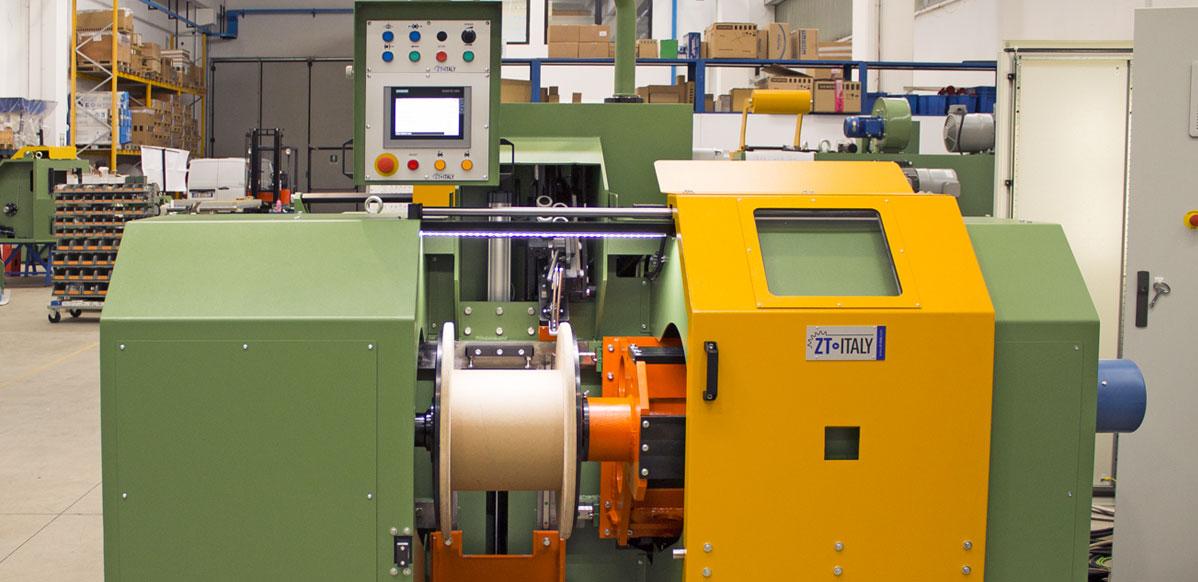

SS
PRECISION LAYER WINDING MACHINES
Respooling line for sub arc and flux cored wire. Suitable for the precision layer winding of large diameter wires
FEATURES AND DIMENSIONS
◦ Programmable logic electronic equipment
◦ Reversible automatic wire traverse
◦ Safety devices in accordance with accident prevention regulations
◦ Front synoptic panel to control the line
◦ Wire straightening unit positioned at right angles
◦ Digital pre-selector footage indicator with deceleration and shutdown on reaching required quantity
◦ Range of wire diameters to be wound: from 1.2 to 5.0 mm

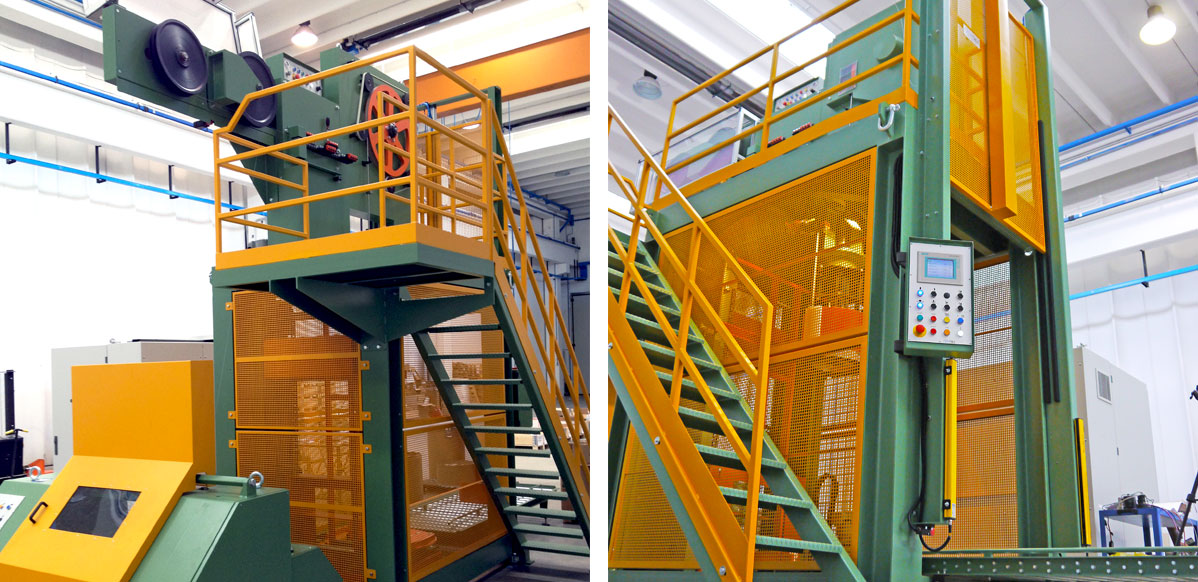

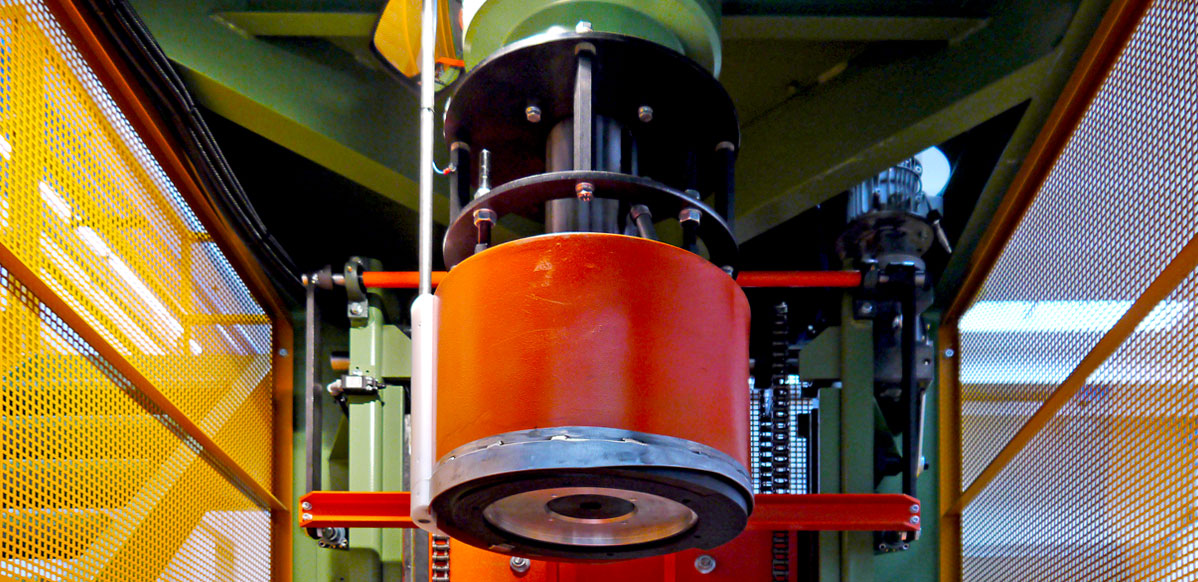

DPM
DRUM PACKING MACHINE
Drum packers for CO2, aluminium, stainless steel and flux cored welding wires. They are used to unwind the wire from reels and place it into drums. The wire is straightened and pre-twisted in order to facilitate an optimal unwinding
FEATURES AND DIMENSIONS
◦ Pneumatic compensator
◦ Wire-straightening
◦ Pneumatic drum unloading
◦ Motorized lifting system
◦ Max. speed: 25 ÷ 35 m/sec.
◦ Wire diameters: 0,8÷1,6 mm
◦ Capstan diameter: 800mm - 1000mm
◦ Drum dimension: from 500 to 800 mm
◦ Max drum height: 1100 mm
◦ Max drum weight: up to 1000 kg

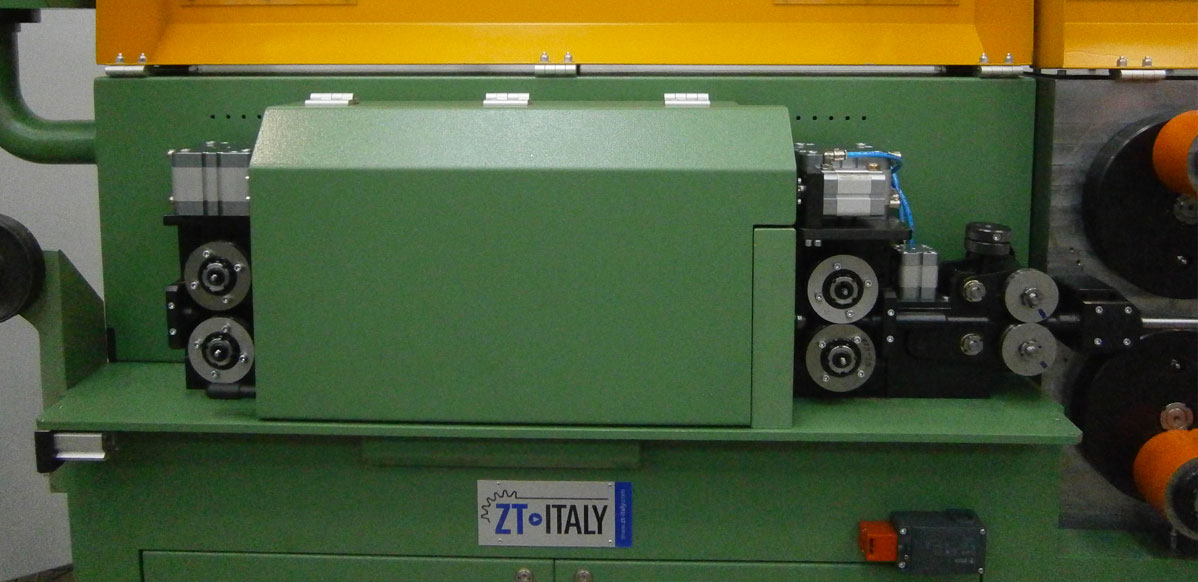

CUTTING
STRAIGHTENING, CUTTING, STAMPING MACHINE
Machine to straighten, cut and stamp TIG rods
FEATURES AND DIMENSIONS
◦ Type of wire: Tig, steel, stainless steel , alluminium
◦ Wire diameters 0,80 - 5,00 mm
◦ Type of straightening: by bushes or hyperbolic rolls
◦ Cut lenght: up to 1000 mm
◦ Type of stamping die: new modular type on 2 sides of the Tig
◦ Max. speed with stamping: 120m/min
DESCRIPTION
◦ The machine consists of:
a_Straightening
b_Stamping
c_Cutting
d_Automatic packing (optional)
e_Pay-off for reels or stems (optional)
