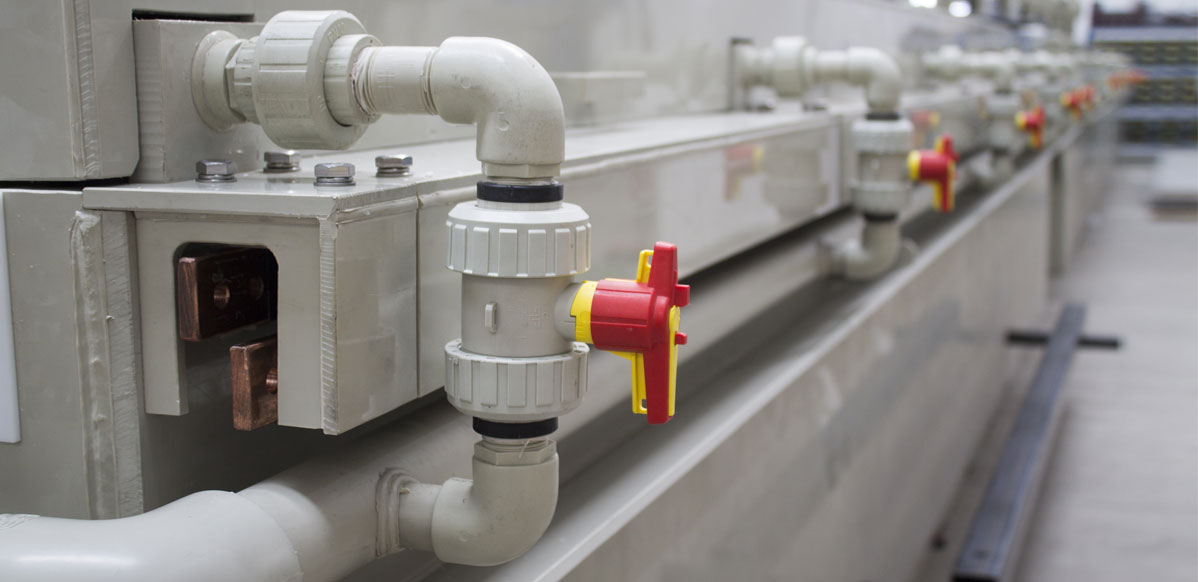

CB
COPPERING TANK
Suitable for the coppering of welding wires and staple wires
FEATURES AND DIMENSIONS
◦ Material to be treated: Welding wire and staple wires, T.S. 100 kg/mm2 max, Carbon content = 0,06÷0,15%
◦ Wires range: from 0,8 to 5 mm
◦ Working pulleys material: ceramic
PROCESS
◦ Pickling H2SO4+H2O
◦ Coppering CuSO4+H2SO4+H2O
◦ Air–wiping
◦ Pressure rinsing H2O
◦ Air–wiping

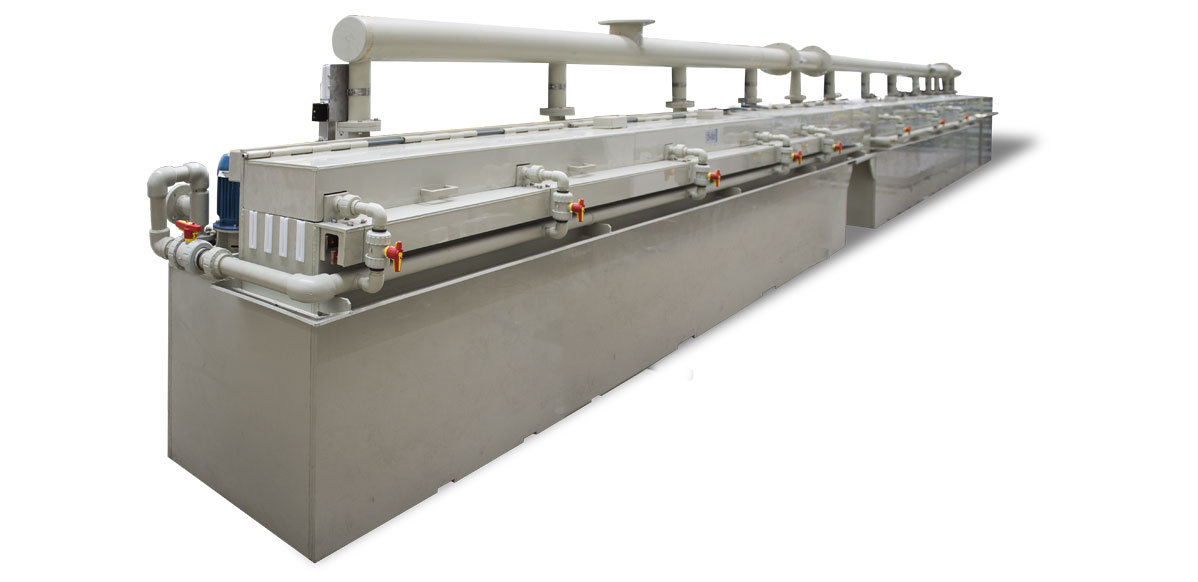

LINE CB
COPPERING LINE
Suitable for the coppering of welding wires and staple wires
FEATURES AND DIMENSIONS
◦ Material to be treated: Welding wire and staple wires, T.S. 100 kg/mm2 max, Carbon content = 0,06÷0,15%
◦ Wires range: from 0,8 to 5 mm
◦ Working pulleys material: ceramic
PROCESS
◦ Pickling H2SO4+H2O
◦ Coppering CuSO4+H2SO4+H2O
◦ Air–wiping
◦ Pressure rinsing H2O
◦ Air–wiping

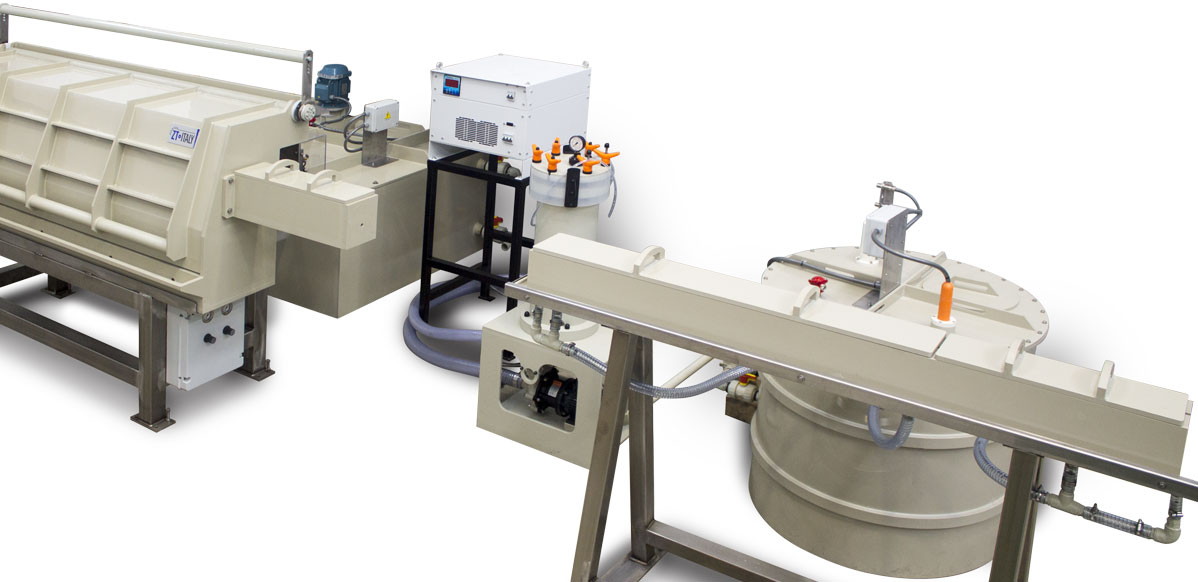

EZB
ZINC COATING TANK
Electrolytic zinc/copper coating tank with rinsing tank and drying
FEATURES AND DIMENSIONS
◦ Wire diameters: 0,60-2,00 mm
◦ Type of wire: low carbon steel
◦ Wire max. speed: 20 m/sec.
◦ Zinc or copper thickness: 0,5 μ
PROCESS
◦ Pickling
◦ Pressure rinsing
◦ Coppering/zinc coating
◦ Blowers
◦ Pressure rinsing
◦ Blowers
LINE EZB
ZINC COATING LINE
Electrolytic zinc coating tank with rinsing tank and drying
FEATURES AND DIMENSIONS
◦ Wire diameters: 0,60-2,00 mm
◦ Type of wire: low carbon steel
◦ Wire max. speed: 20 m/sec.
◦ Zinc or copper thickness: 0,5 μ
◦With skinpass monoblock 11-18%
PROCESS
◦ Pickling
◦ Pressure rinsing
◦ Coppering/zinc coating
◦ Blowers
◦ Pressure rinsing
◦ Blowers

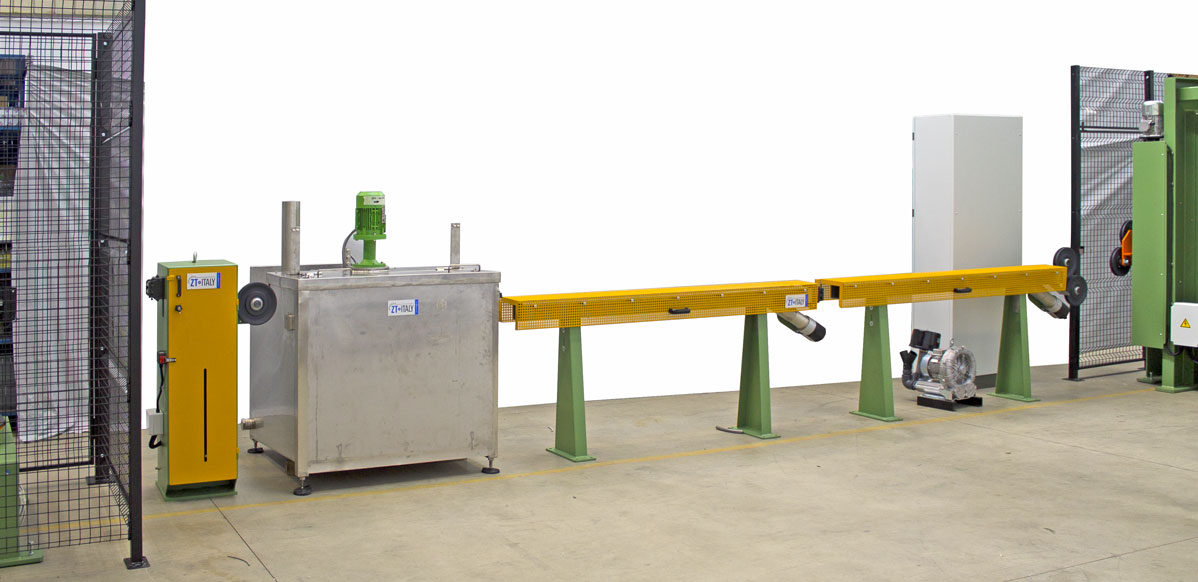

LINE BRC
BOREX LINE AND SALTING LINE FOR FERROUS WIRE
Treatment and wire rod preparation of High and Low Carbon Steel, Stainless Steel
FEATURES AND DIMENSIONS
◦ Wire rod treatment.: Salting or borax
◦ Wire rod diameter: 5,5-8 mm
◦ Treatment speed : up to 3,5 m/sec
◦ Fluid circulation: with helix
◦ Drying : With hot air blowers
◦ Bath heating: Electric or with steam
◦ Dimensions of the line: length: 4 m., width: 1,5 m

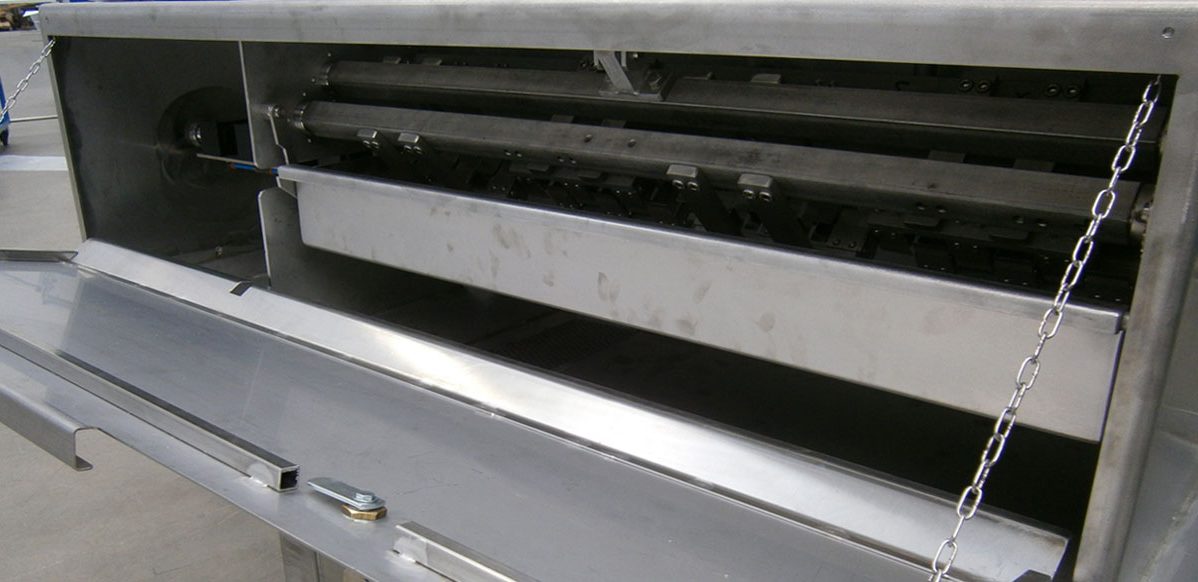

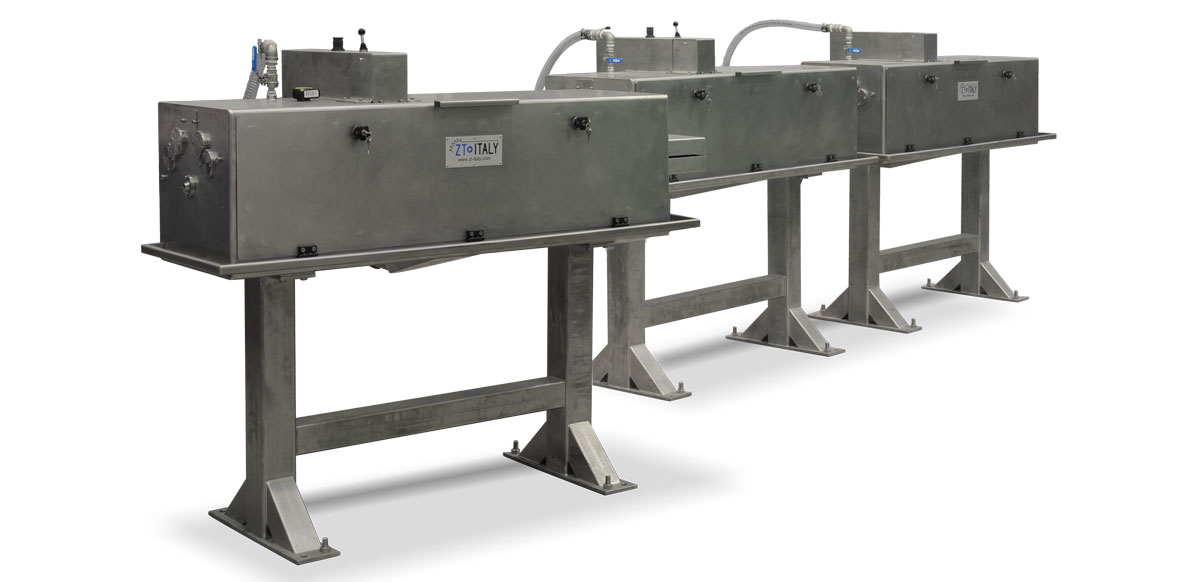

CLEANING
CLEANING AND BRIGHTENING LINE
Cleaning bath for steel with or without ultrasound
FEATURES AND DIMENSIONS
◦ Wire to clean : Carbon steel wires
◦ Diameters of the wires : 0,8-2,00mm
◦ Speed of the wire : up to 15 m/sec
◦ Characteristics of the soap to clean: Sodium stearate- Calcium Stearate
◦ Temperature of the cleaning hot water : 60°-70°C
◦ The line is composed by the following components:
a_Wet brushing unit with 6 contact points
b_Dryer with 4 air wipes
c_Paper filter
d_Circulating bath for the two brushing unit[/heading]
